HB 500 Handrail Bracket

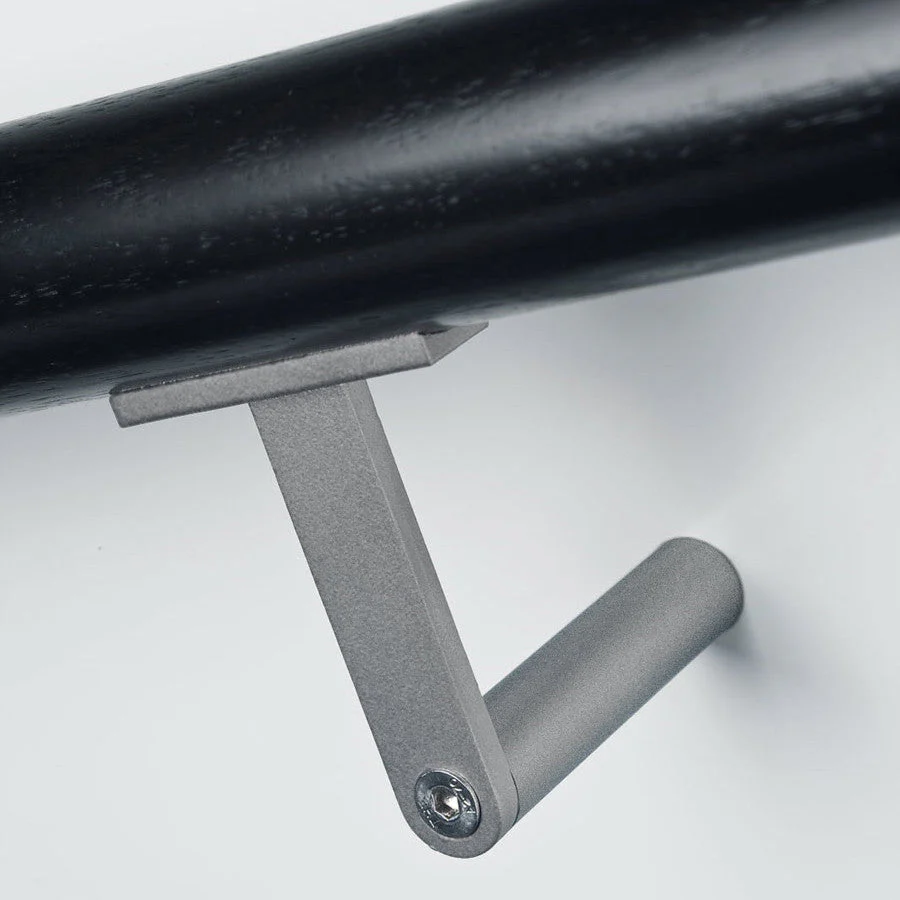

The HB 510 Handrail Bracket features both a round support post with a more linear attachment bracket. Intended for use with 1-1/4" to 2" diameter wood handrails. For exterior and marine applications or where corrosion resistance is desired, the HB 510 is fabricated from solid stainless steel.

Specifications

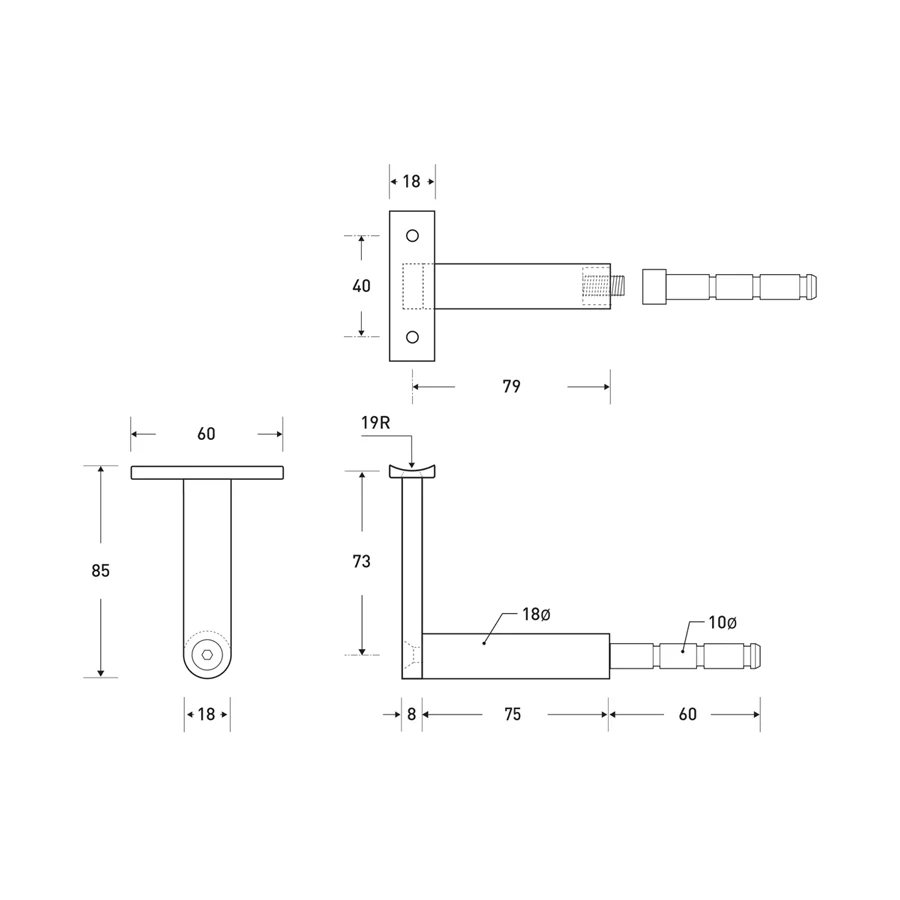

L 83 mm (3.26") X H 73 mm (2.87) X W 18 mm (0.7"), maximum spacing 800mm (31.50")
Includes all fasteners. Epoxy sold separately.

Optional Accessories:

Glass Fixing Kit 502 for HB 500 for installations on glass or other panel material, sold separately.

Material(s)

Non-anodized aluminum alloy

Available in 7 finishes, custom finishes available upon request:

• Satin Chrome
• Polished Chrome
• Matte White
• Gloss White
• Satin Nickel
• EBA Black


Product Downloads

HB 500 Product Sheet
HB Finish Guide
