Qtoo Wall Mounted Sensor Tap System

Touchless wall-mounted tap system crafted from marine-grade stainless steel for seamless integration and long-term performance.

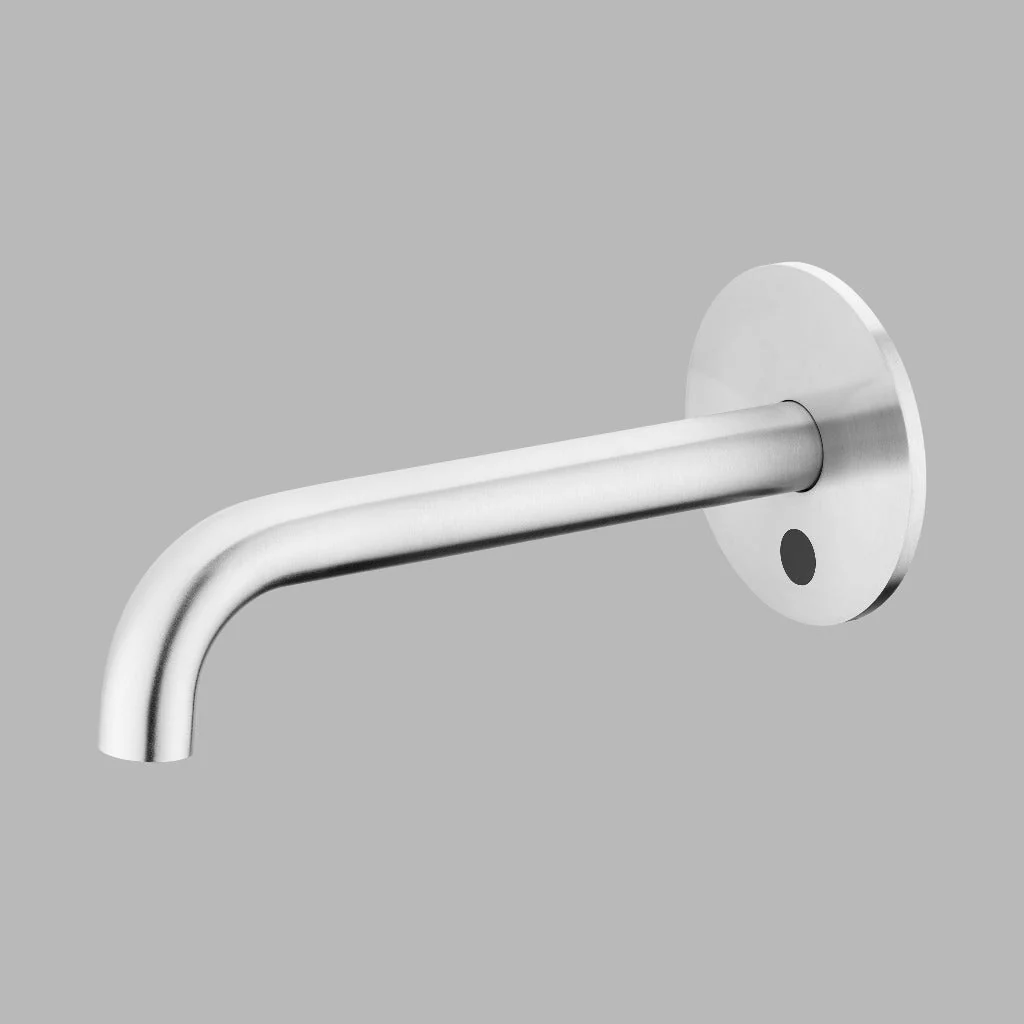

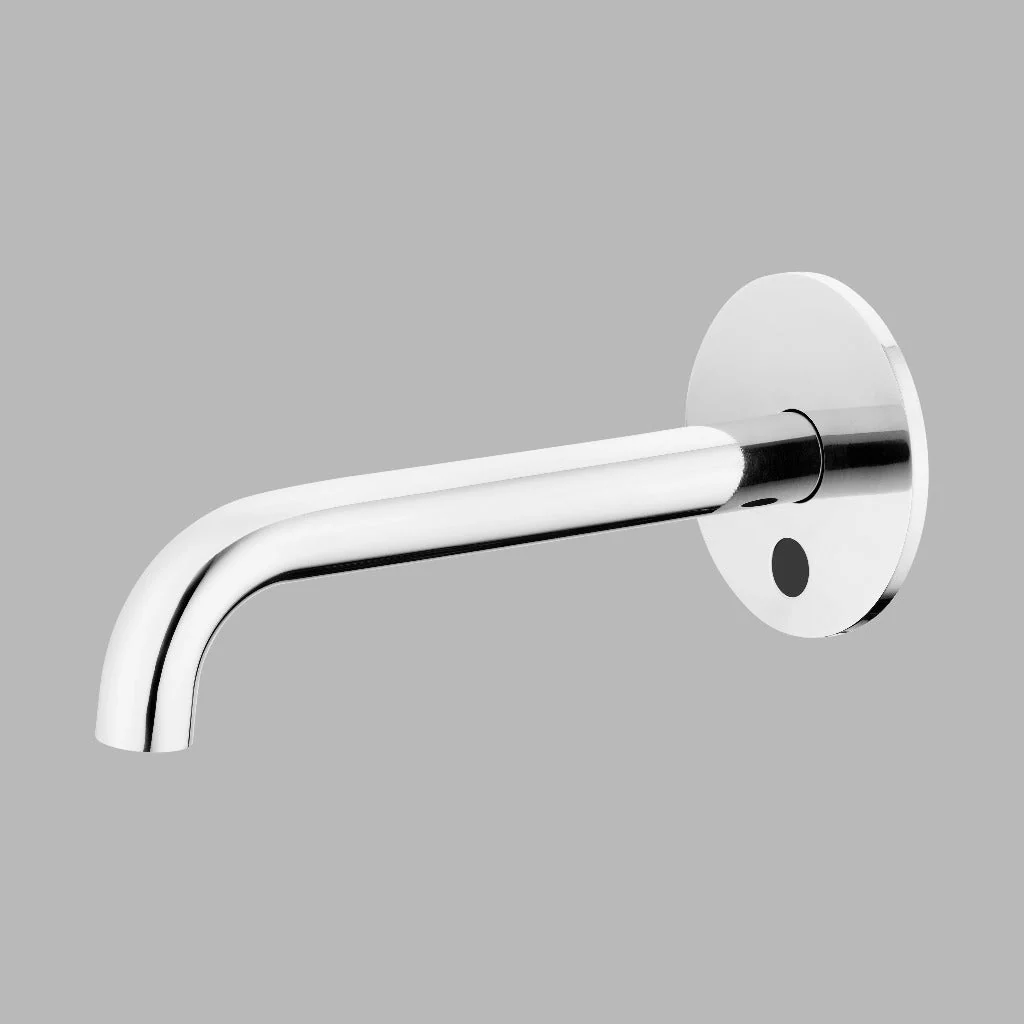

The Qtoo Wall-Mounted Sensor Tap delivers precise, hands-free functionality within a minimalist, architectural form. Available in two projection lengths, the fixed cylindrical spout features an integrated infrared (IR) sensor housed within a Ø90 mm rose—creating a fully built-in aesthetic that aligns with other Qtoo fixtures.

Engineered for high-use environments, Qtoo sensor taps are crafted from AISI 316 marine-grade stainless steel to resist corrosion, humidity, and harsh cleaning agents. Each system includes a concealed control box and can be paired with optional matching drain and siphon components for a complete installation.

Designed by Hans Thyge & Co for d line. Lead-free, NSF/ANSI 61 certified, and backed by a 10-year warranty.

Made in Europe.

What’s Included

• Sensor Spout – Ø90 mm rose with 190 mm or 250 mm projection
• QSF01 – Flexbox (sensor control module)
• Flexbox Power Hook-Up with plug
• QS3400 – 1/2" Rough-In Connector
• 2 × BD8002GN – 1/2" NPT to GN Adapters (for North American supply lines)

Optional Components

• QA1150 – Hygiene+ Push Drain: Sealed, side-diverting drain reduces water pooling and bacterial buildup.
• QA1250 – Hygiene+ Fixed Open Drain: Fixed horizontal grate-style drain with removable cover.
• QA1100 – Standard Push Drain: Classic push-to-open/close mechanism with vertical flow.
• QA1200 – Standard Fixed Drain: Fixed vertical grate-style drain with removable cover.
• QA1400 – P-Trap: Chrome-plated brass bottle trap, recommended for exposed plumbing.

Specifications

• Available Projections:
  • 190 mm (7.5")

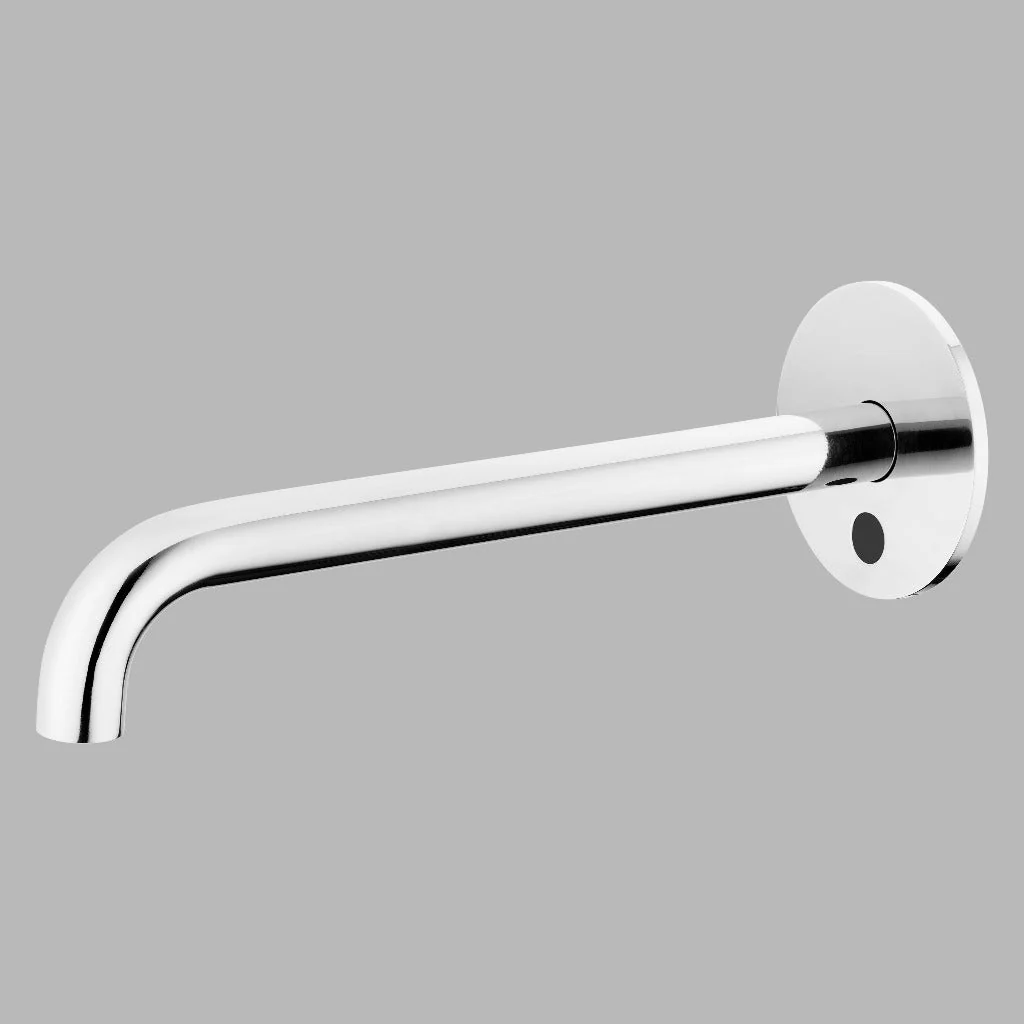

  • 250 mm (9.8")
• Rose Diameter: Ø90 mm (3.5")
• Fixed spout with built-in aerator
• Recommended Clearance: Min. 140 mm (5.5") from aerator to basin waste
• Sensor Detection Distance: 50–250 mm
• Flow Rate: Max. 1.3 gpm (5.0 L/min)
• Comfort Timeout: 2 seconds
• Security Timeout: 30 seconds
• Automatic Rinse: Deactivated by default
• Battery Life (6 x AA):
  • 20 activations/day ≈ 8.4 years
  • 150 activations/day ≈ 4.6 years
• Low Battery Warning: LED blink every 5 seconds (10-day alert)
• Max Working Pressure: 8 bar
• Control Module: Flexbox QSF01 with integrated temperature adjustment
• Lead-free compliant

Material(s)

• Marine-Grade Stainless Steel (AISI 316)
• Lead-Free & Antibacterial

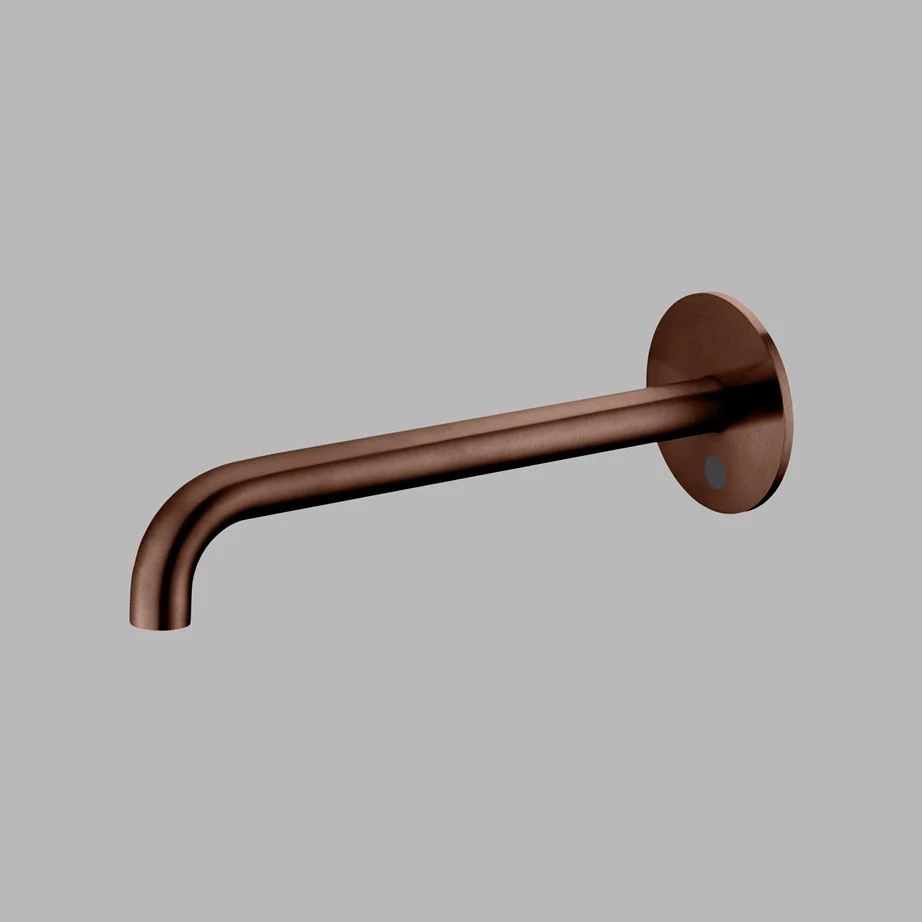

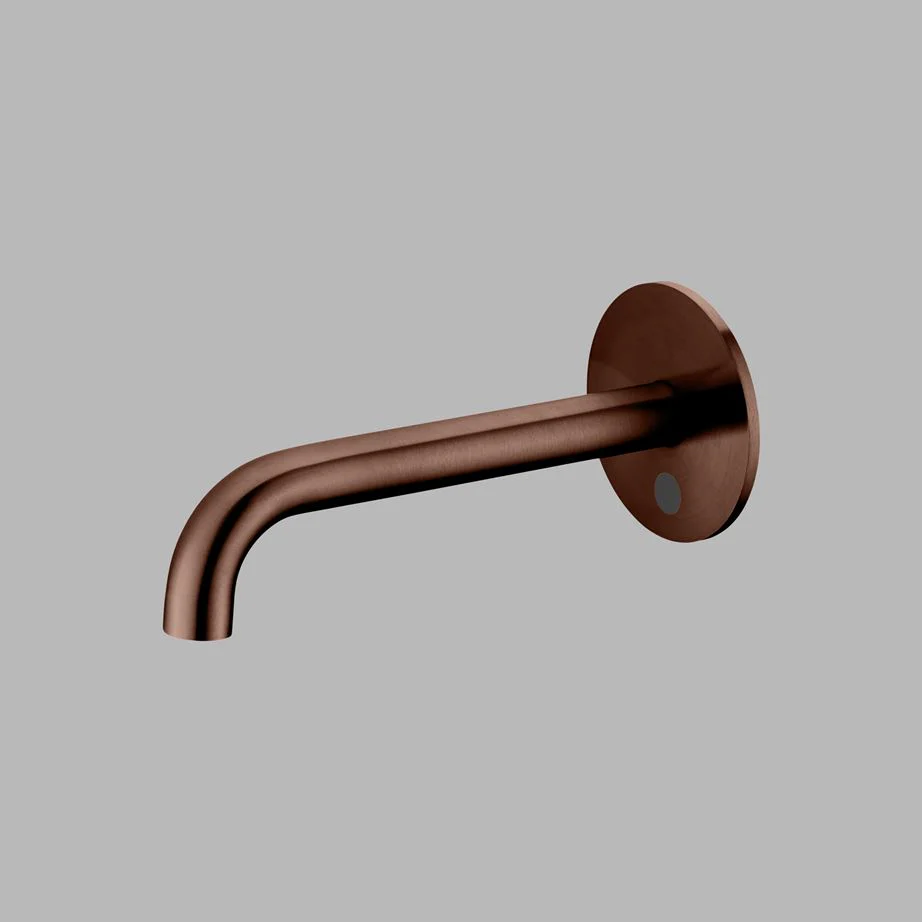

• Finishes:
  • Polished Stainless Steel

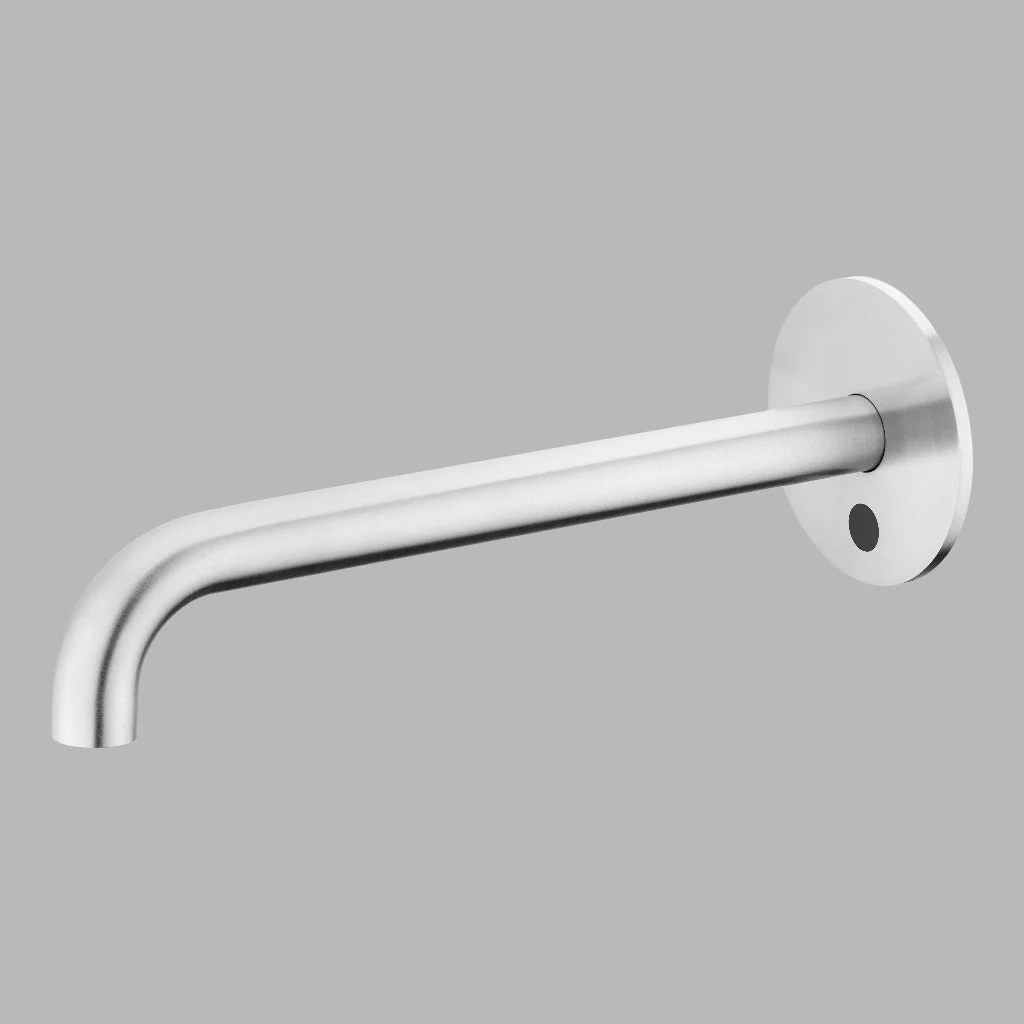

  • Satin Stainless Steel

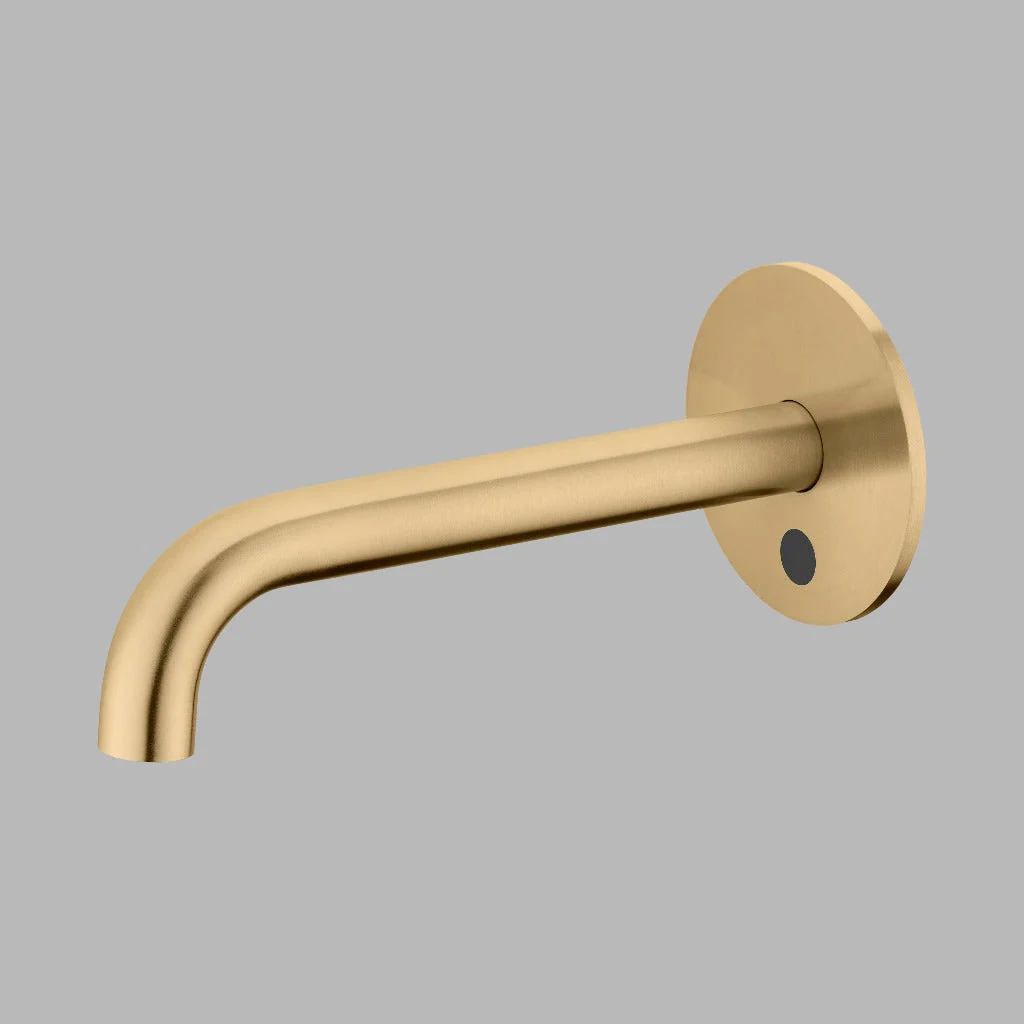

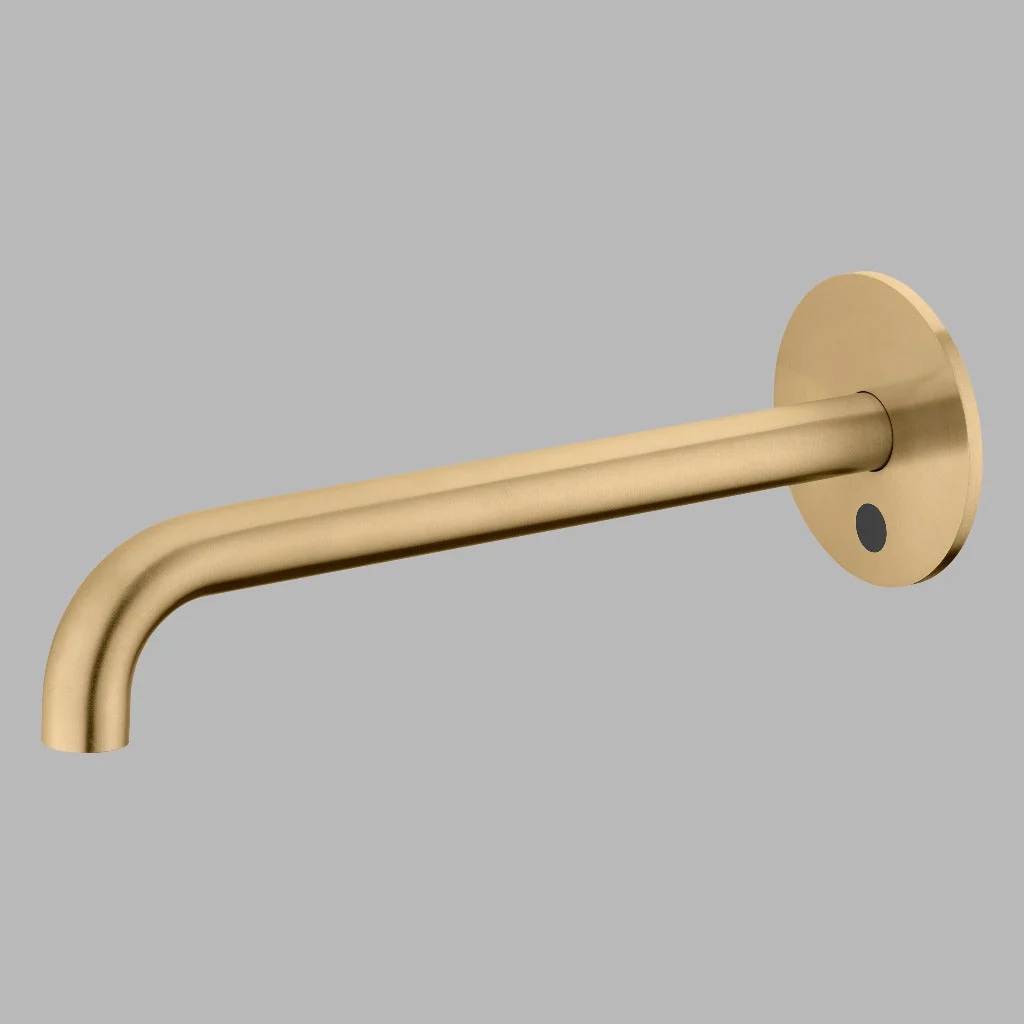

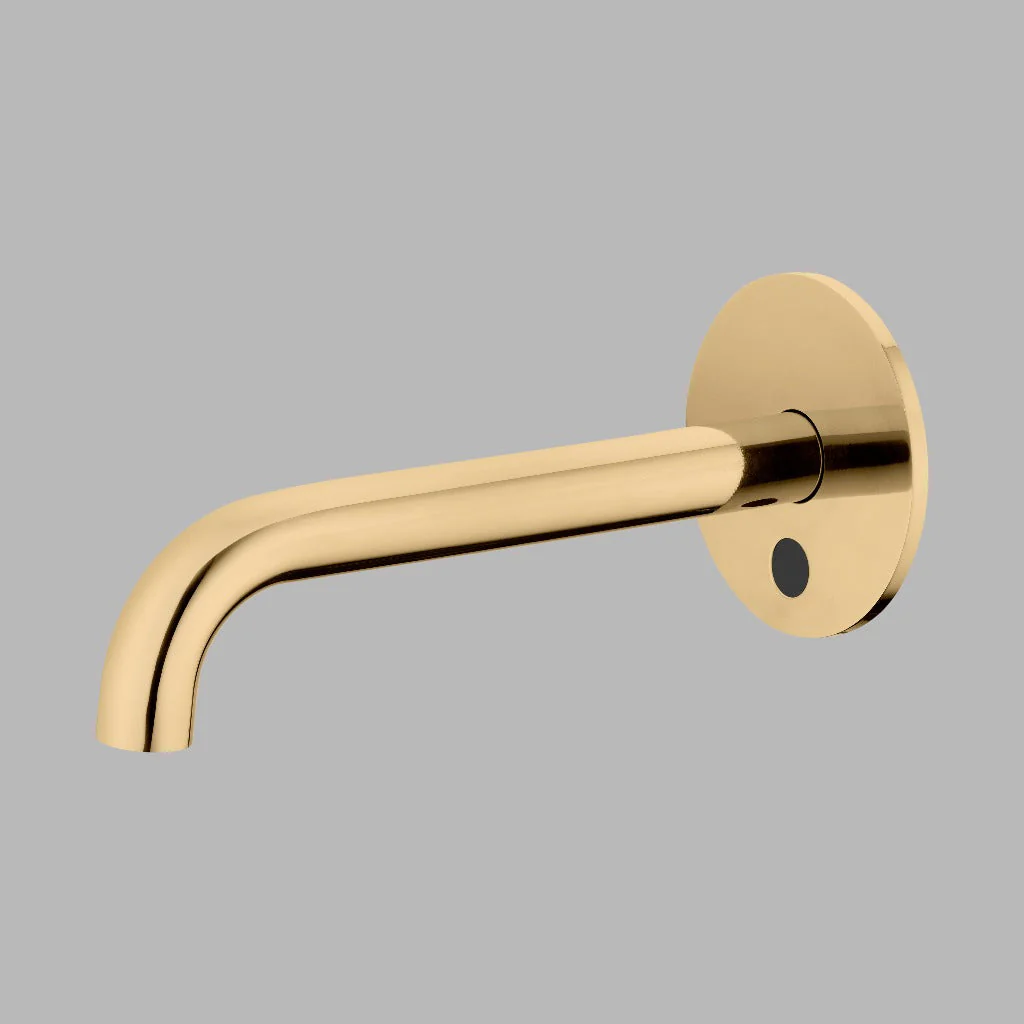

  • PVD Satin Brass

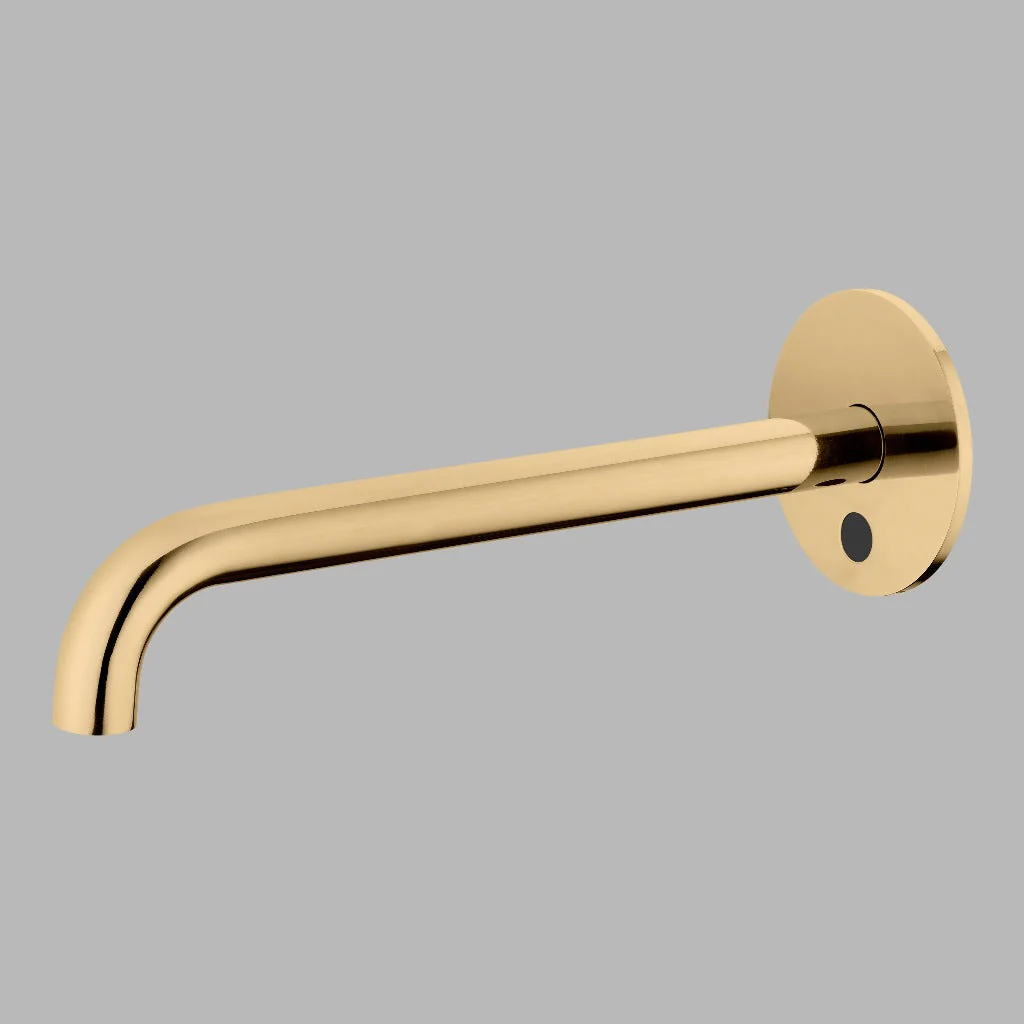

  • PVD Polished Brass

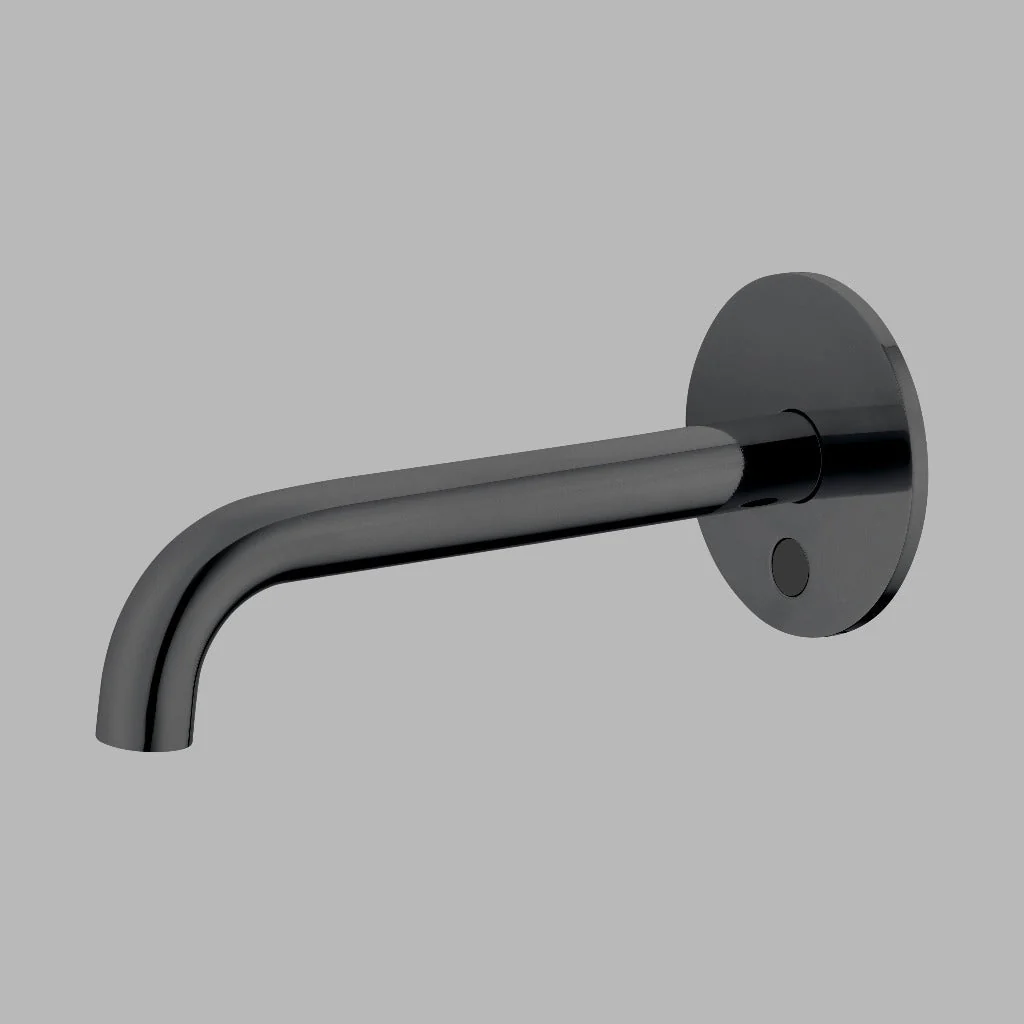

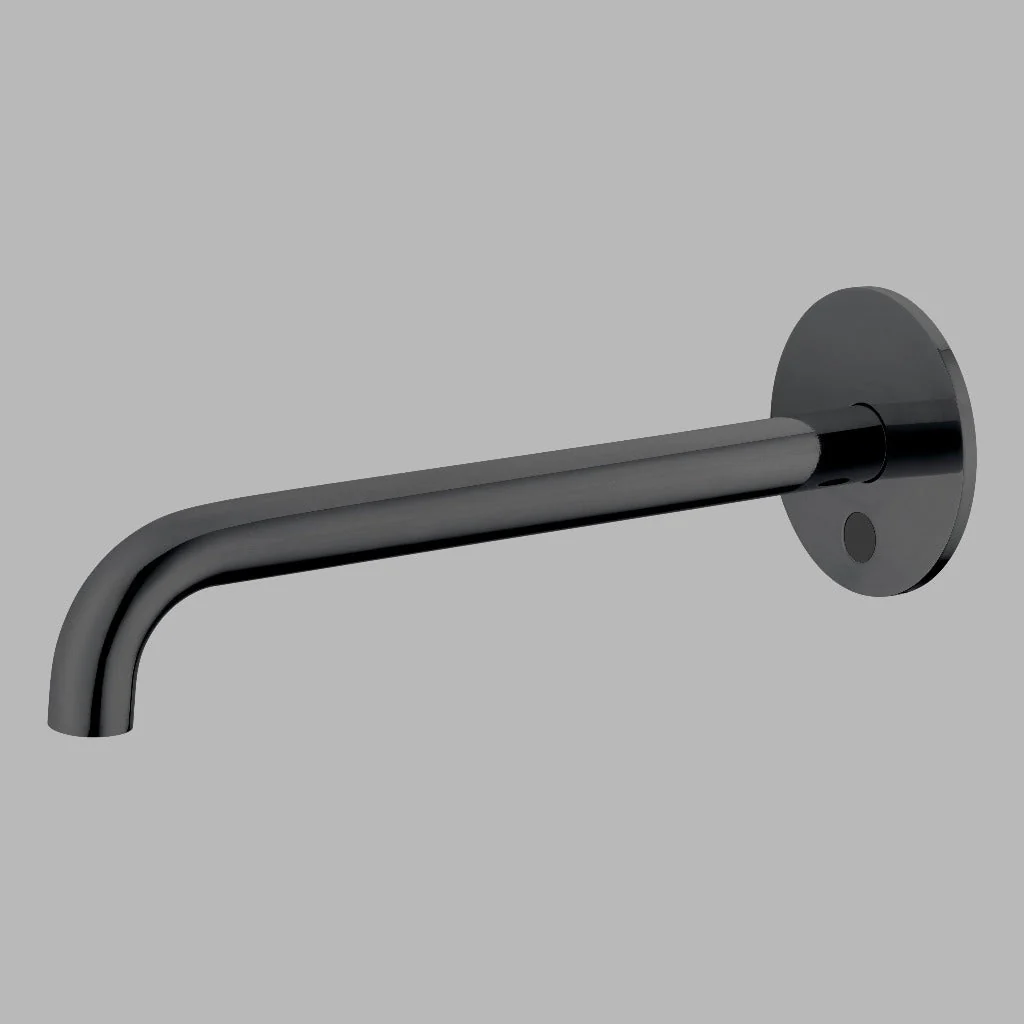

  • PVD Satin Black
  • Matte Black

Certifications

• NSF/ANSI 61 Certified for Water Purity
• CSA B125.1 (2018) and ASME Compliant
• Leakage-tested to 15 bar
• 10-Year Product Warranty
• 5-Year PVD Finish Warranty
• Made in Europe

Downloads

• Sensor Tap – 190 mm Product Sheet
• Sensor Tap – 250 mm Product Sheet
• Installation Instructions – Sensor Tap
• Installation Instructions – Flexbox
• Qtoo Product Catalogue
