SA Wall and Glass Mounted Brackets

With its perfect balance of modern lines and sophistication, the SA brackets defy logic and create fascination between its unparalleled strength and graceful delicateness. The SA wall mounted handrail bracket is available for wall and glass applications.

Complementing square glazing standoffs for glass mounting available in 1-1/2” & 2” lengths can be found here.

Specifications

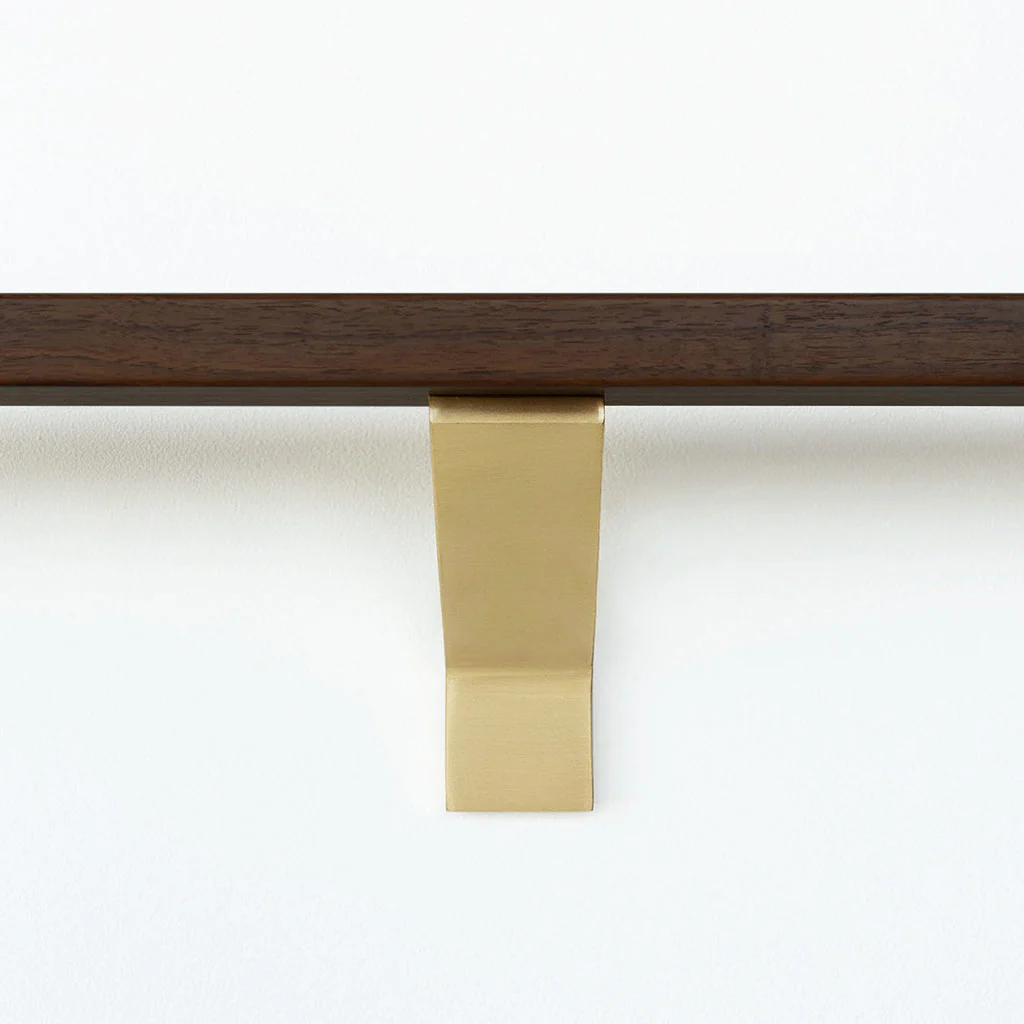

Wall

• W 44.5 mm (1.8") X H 117 mm (4.6") X D 74.6 mm (2.9")
• Please note: minimum 38 mm (1.5") of solid backing, wood stud, or concrete required for anchoring.
• Suggested spacing: 1220 mm (4'-0")
• Comes complete with all fasteners except 2 #10 flat head wood screws.

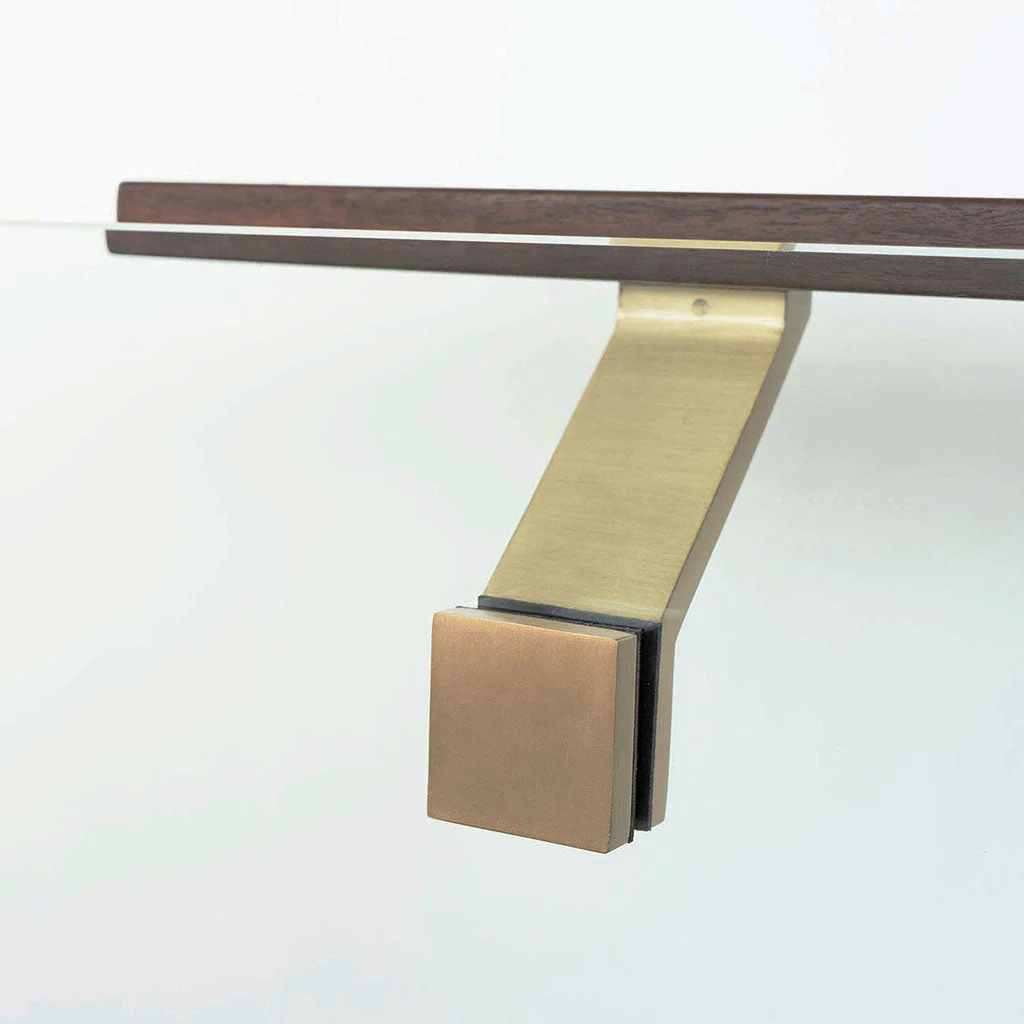

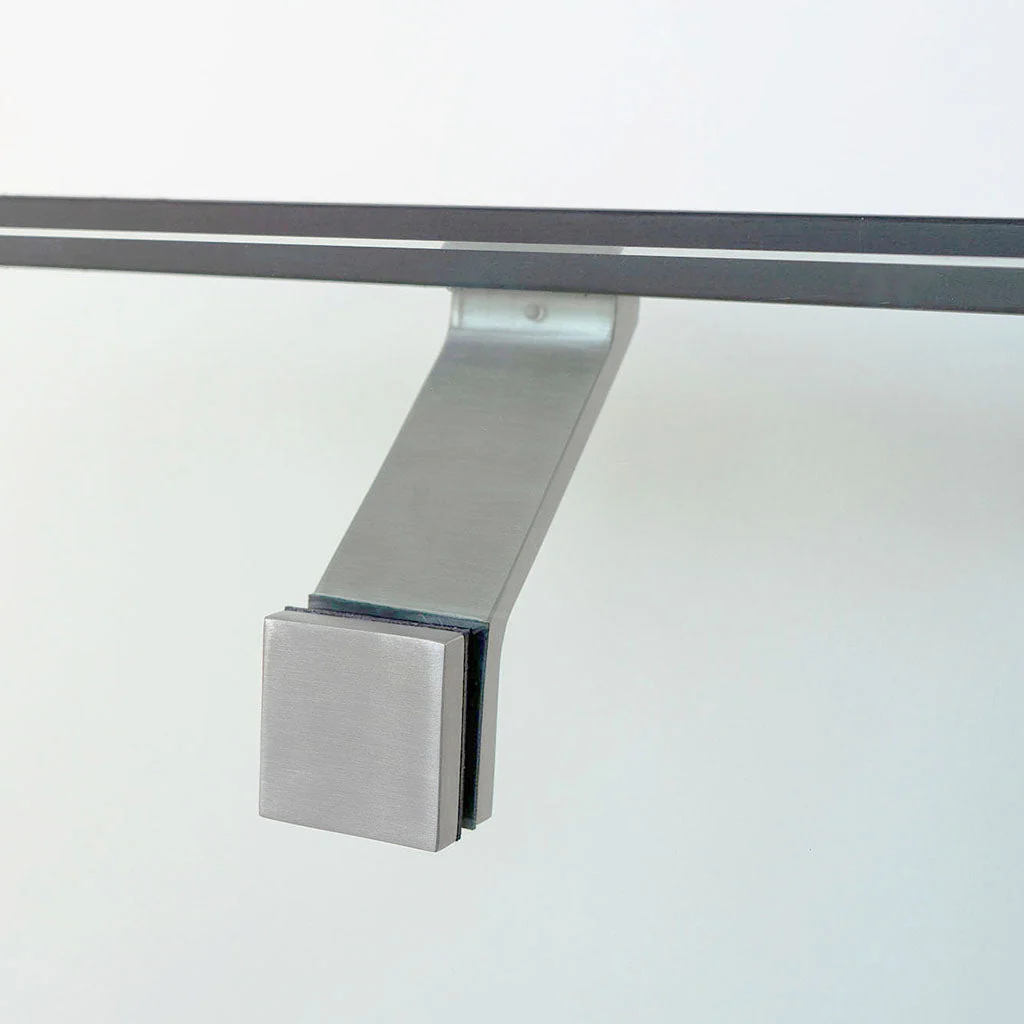

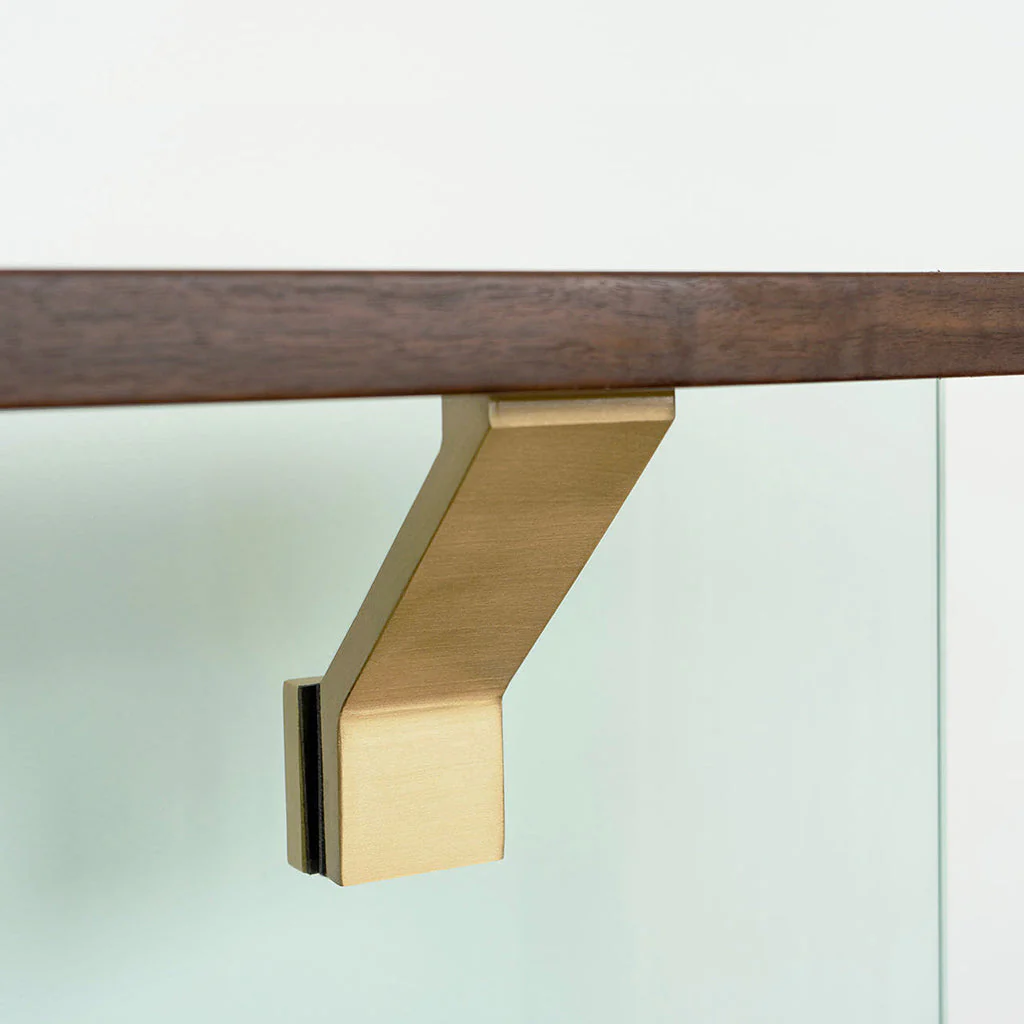

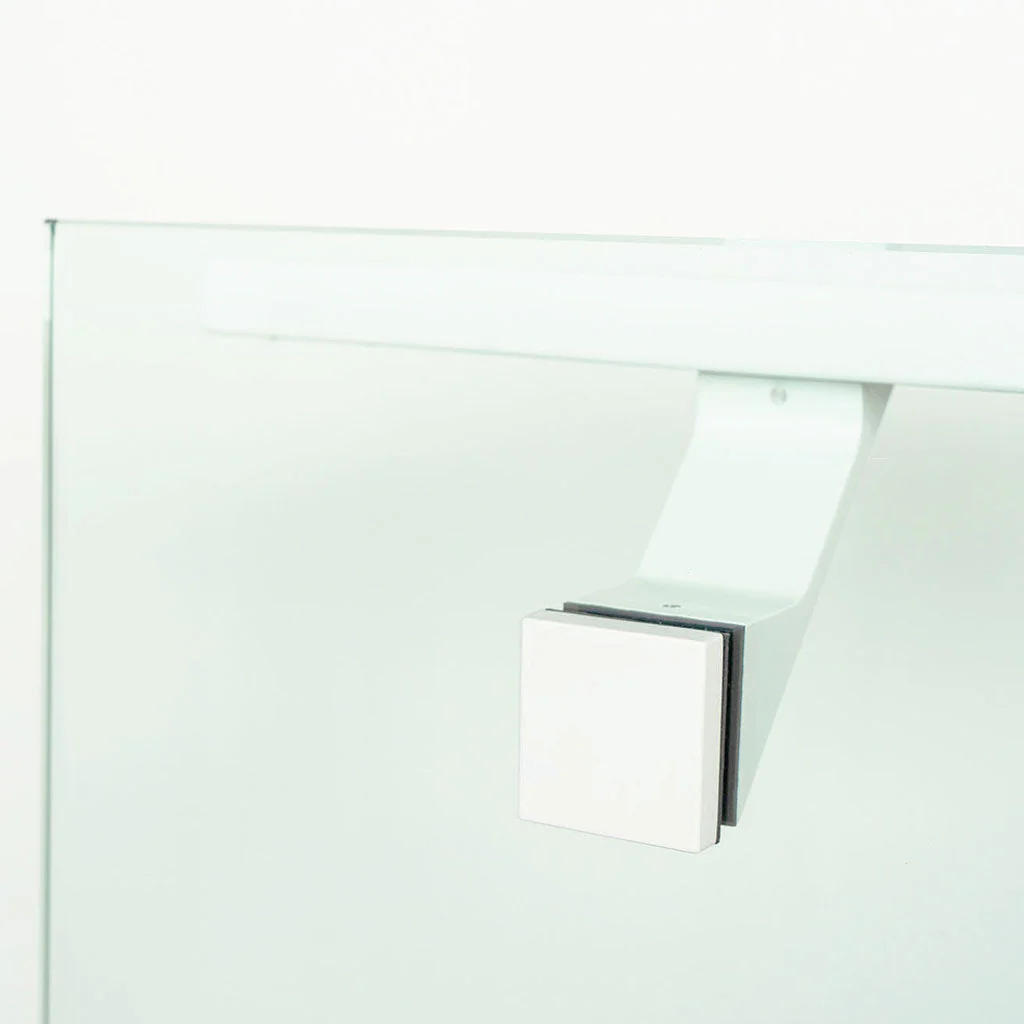

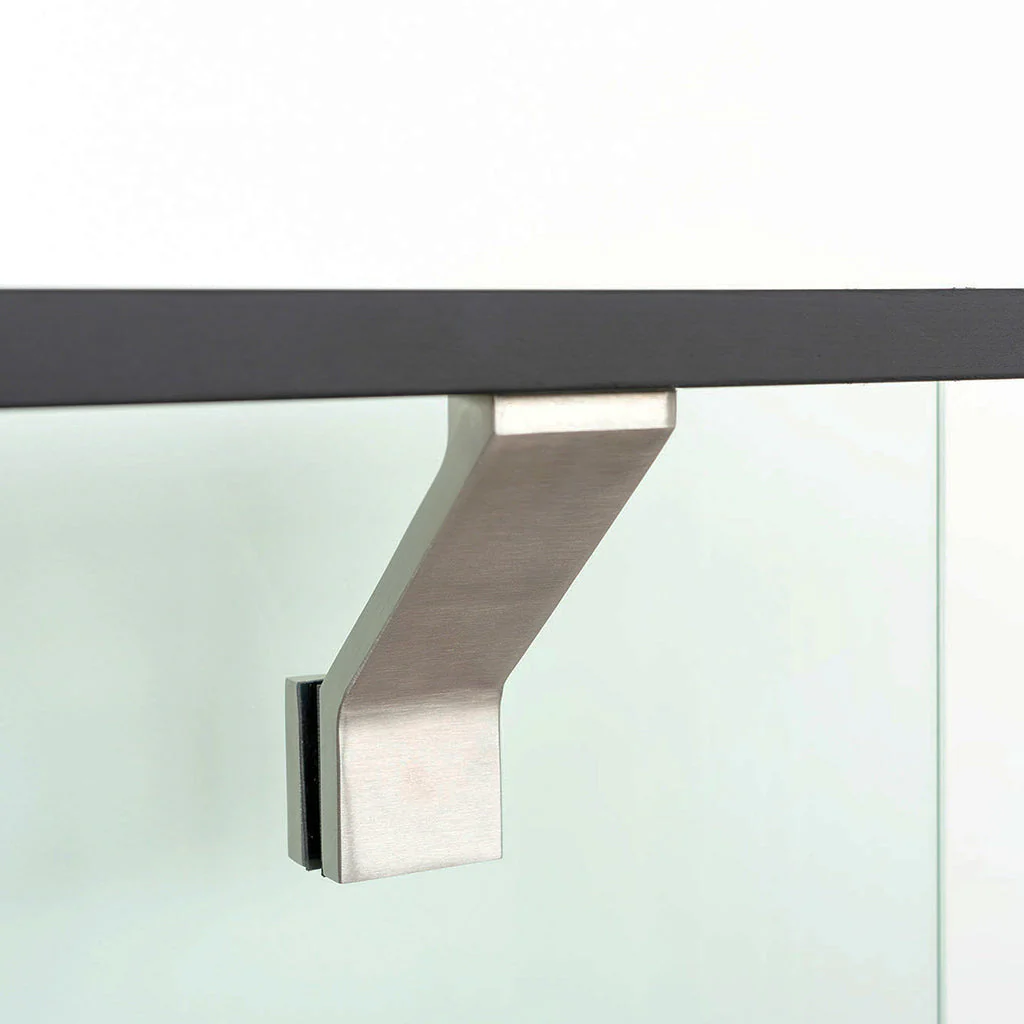

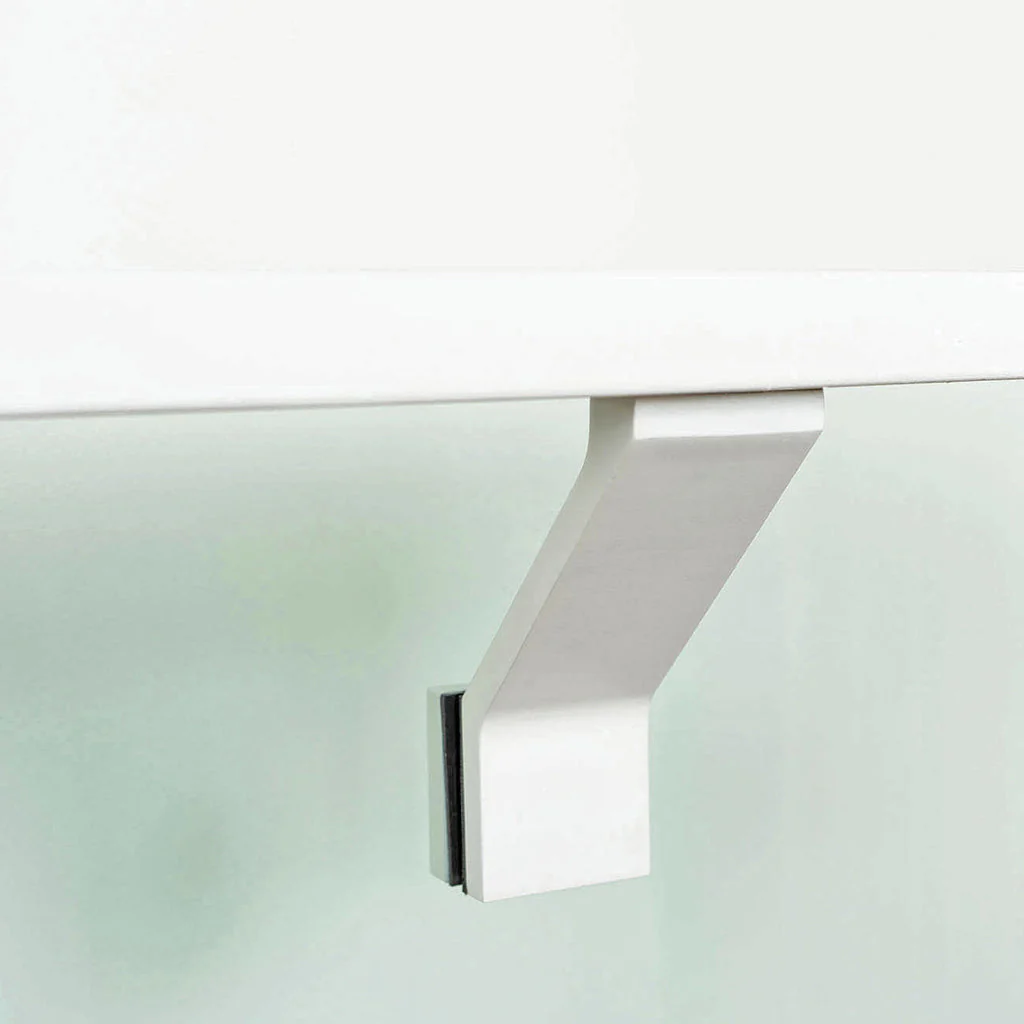

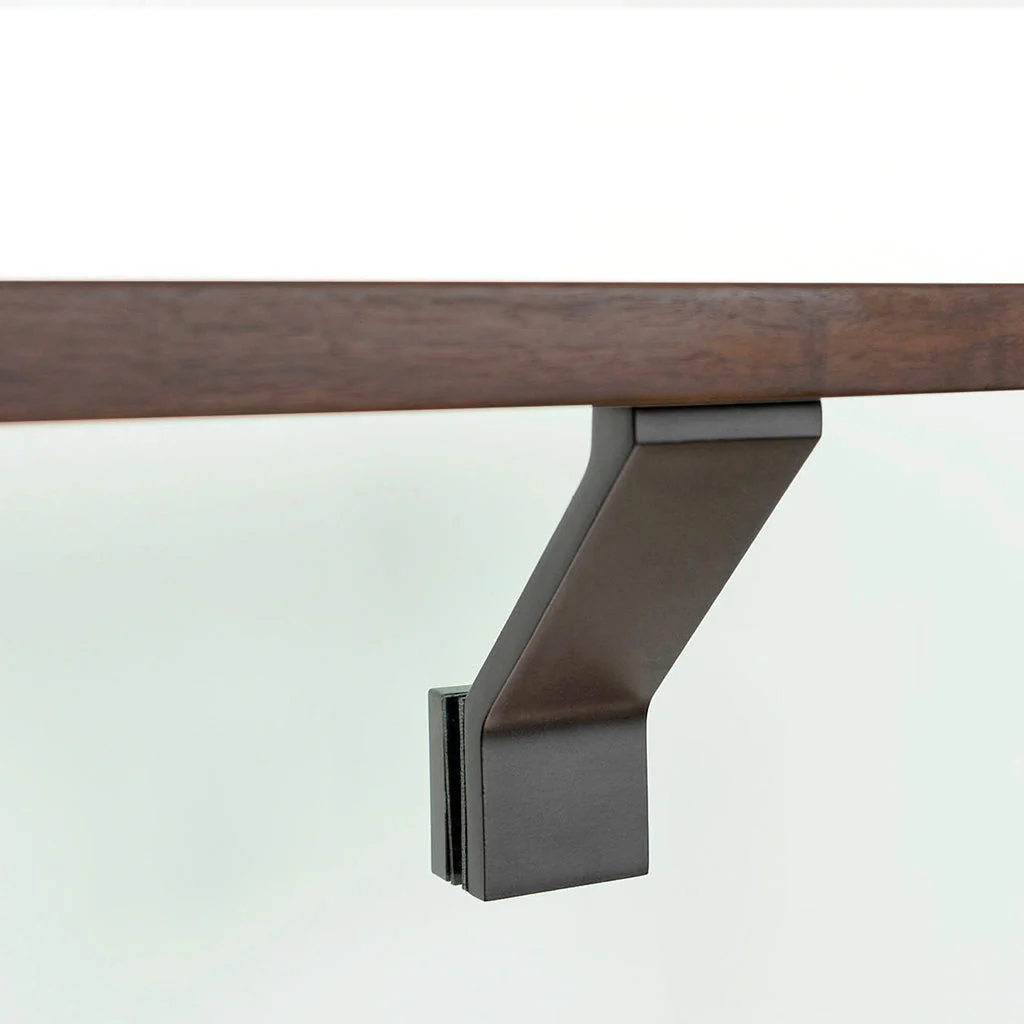

Glass

• W 44.5 mm (1.8") X H 117 mm (4.6") X D 76.2 mm (3")
• Please note: 19 mm (0.75") diameter hole in glass required. Glass thickness should be specified when ordering.
• Suggested spacing: 1220 mm (4'-0")
• Comes complete with all fasteners except 2 #10 flat head wood screws.

Material(s)

304 Stainless Steel, brass.

Available in the following finishes:

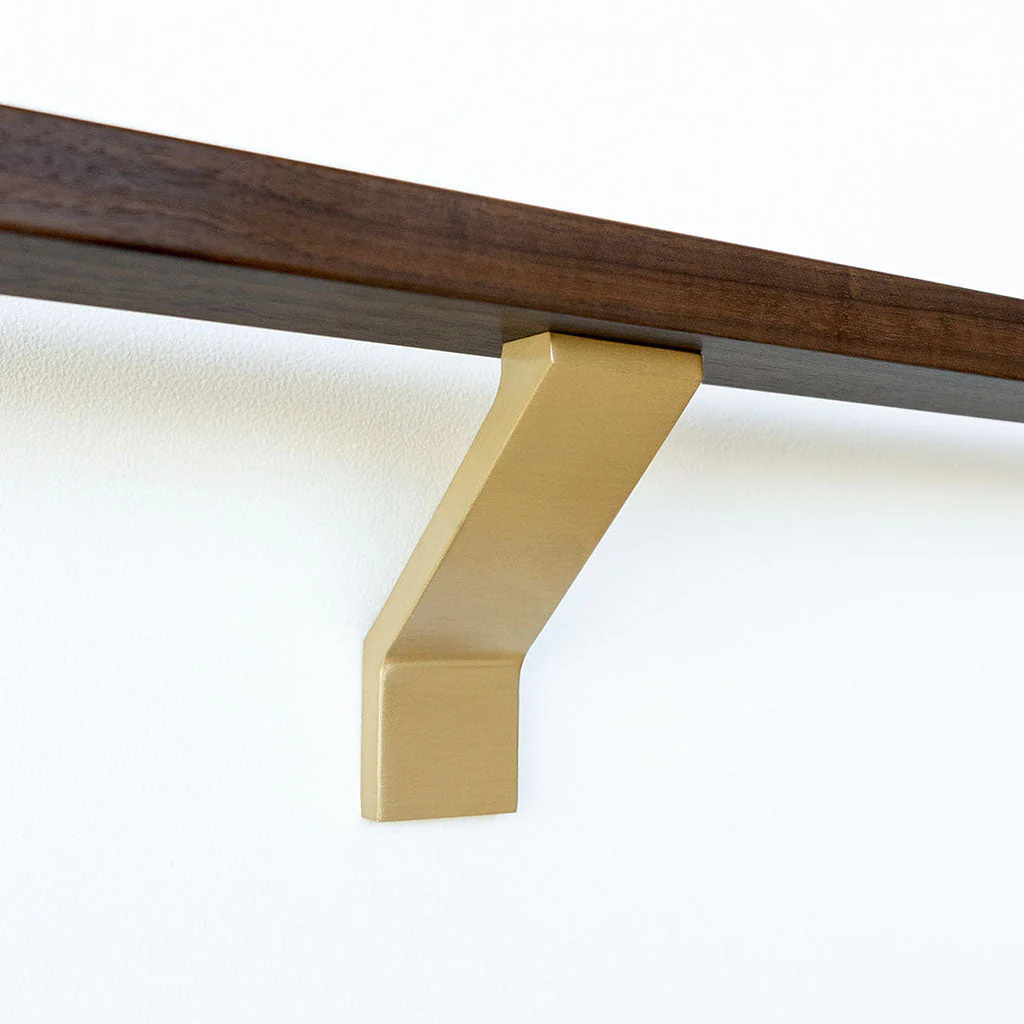

Brushed Brass

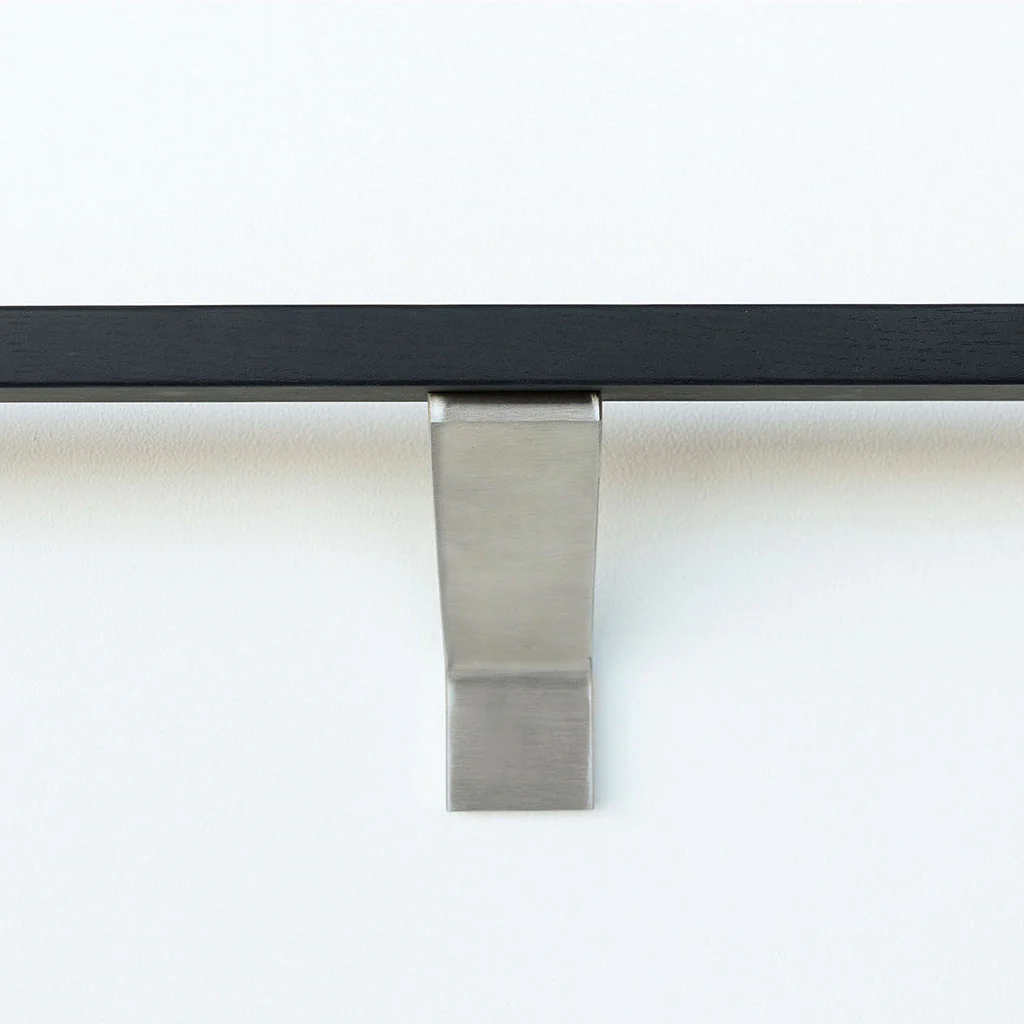

Brushed Stainless Steel

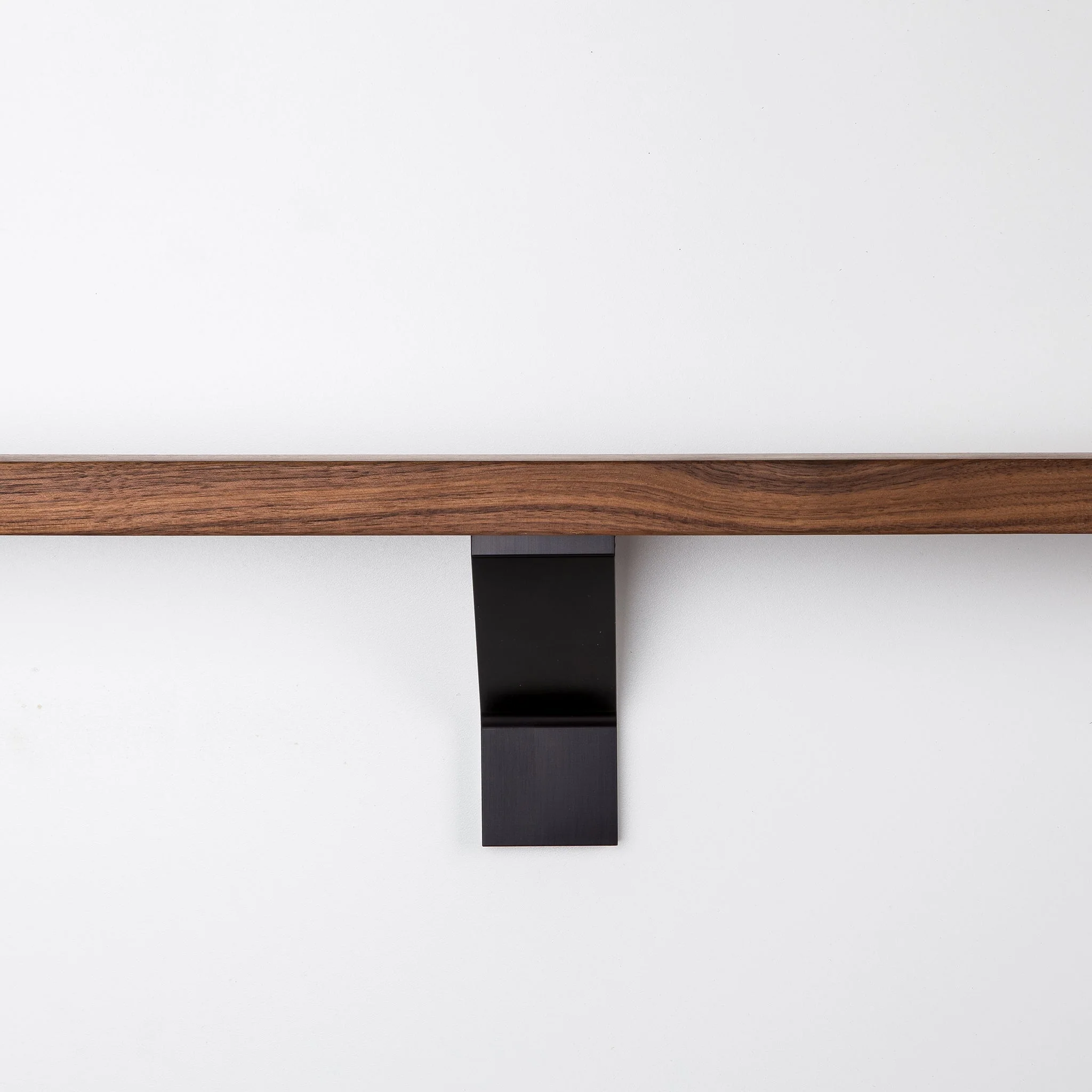

Powder Coated Black

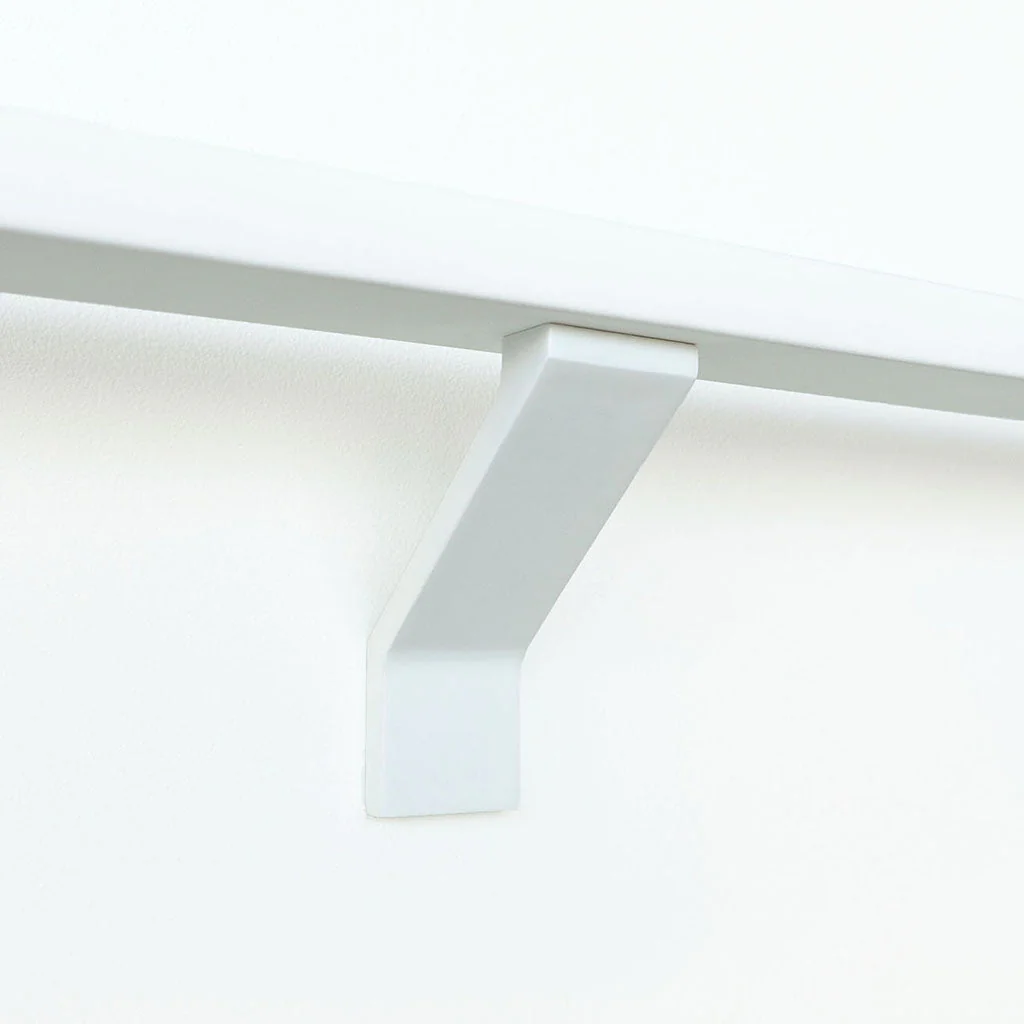

Powder Coated White

Product Downloads

SA-Wall Product Sheet
SA-Wall 2D AutoCAD Blocks
SA-Wall Sketchup Drawing
SA-Wall Installation Instructions

SA-Glass Product Sheet
SA-Glass 2D AutoCAD Blocks
SA-Glass Sketchup Drawing
SA-Glass Installation Instructions
